Lumafield Industrial CT — Inline and Large-Part Inspection

Name: Lumafield Industrial CT — Inline and Large-Part Inspection
Brand: Lumafield

Overview

Lumafield builds accessible industrial CT for engineering and manufacturing teams, pairing a scanner with cloud-based analysis so that looking inside a part is a routine step rather than a specialist service sent out to a lab. Two capabilities set the line apart: conveyor-integrated inline inspection at production throughput, and the ability to scan large parts up to 1000 mm long by 600 mm in diameter.

Use Cases

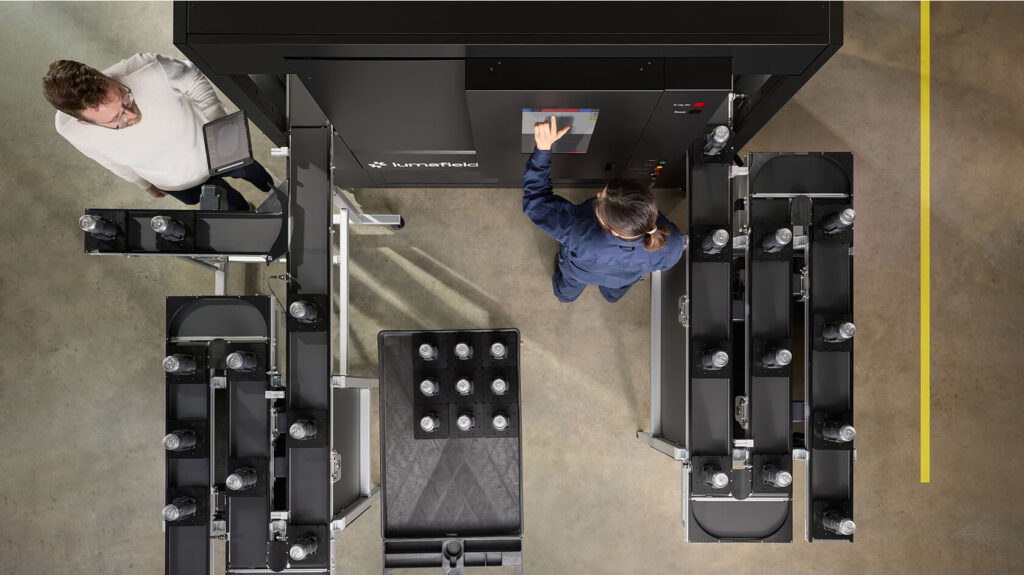

Inline production inspection: a conveyor-integrated configuration scans hundreds of parts coming off a manufacturing line, so internal quality is checked at production rate instead of on occasional samples pulled for destructive testing.
Large parts: components up to 1000 mm long and 600 mm in diameter fit the system, covering assemblies that will not go into a standard benchtop cabinet.
Failure and root-cause investigation: internal geometry, porosity, voids and assembly defects are visible without sectioning the part, so a returned or failed unit can be examined and still exist afterwards.
Design verification and first-article inspection: measure internal features and wall thicknesses on a prototype and compare against the CAD model before committing to tooling.
Electronics and battery inspection: solder joints, internal connections and cell structure examined non-destructively.

Unique Benefits

Throughput, not just capability: the inline configuration is the difference between CT as a lab technique and CT as a production quality tool.
Cloud-based analysis: scans are processed and shared through a browser, so results reach engineers who never touch the scanner.
Accessible operation: designed to be run by engineering teams rather than requiring a dedicated CT specialist.
Non-destructive: the inspected part survives, which matters when the part is expensive, unique or a customer return.
Local support from Merkel: demonstration on your own parts, installation, training and service in Israel.
